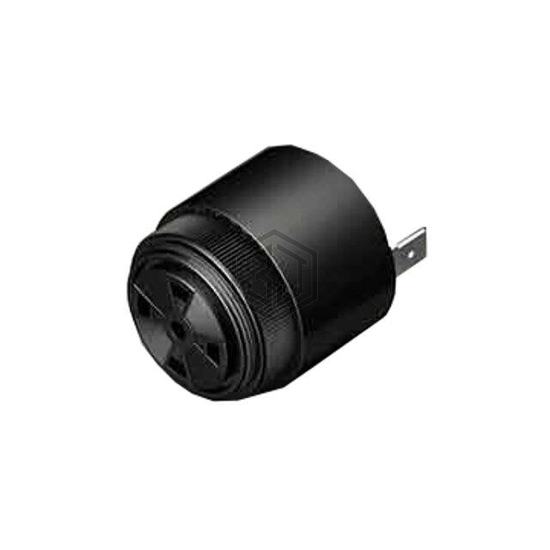

BUZZER PIEZO 35.8MM PNL MNT
CH-09-525-Q(HS) is a Alarms, Buzzers, and Sirens manufactured by Floyd Bell Inc. BUZZER PIEZO 35.8MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 65°C, current - supply 5 ~ 25mA, size / dimension 1.409" Dia (35.80mm).
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | - |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 5 ~ 25V |
| Frequency | 2.1kHz |
| Technology | Piezo |
| Operating Mode | Chime, Single Shot |
| Duration | - |
| Sound Pressure Level (SPL) | 93dB @ 25V, 61cm |
| Current - Supply | 5 ~ 25mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 65°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Quick Connect Tab - 0.250" (6.35mm) |
| Size / Dimension | 1.409" Dia (35.80mm) |
| Height - Seated (Max) | 1.380" (35.05mm) |
Submit your RFQ for CH-09-525-Q(HS) and get a quote within 24 hours.
