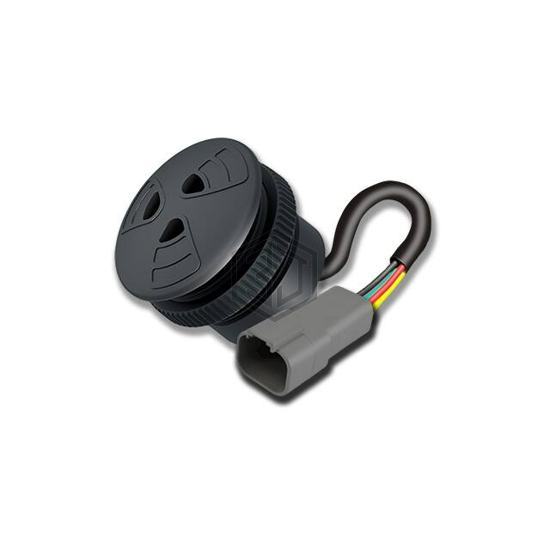

BUZZER PIEZO 47.2MM PNL MNT
CAN96930H is a Alarms, Buzzers, and Sirens manufactured by Floyd Bell Inc. BUZZER PIEZO 47.2MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 65°C, current - supply 30 ~ 40mA, size / dimension 1.858" Dia (47.20mm).
In Stock: 994
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 9 ~ 30V |
| Frequency | 1.8kHz |
| Technology | Piezo |
| Operating Mode | Multiple Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 108dB @ 30V, 61cm |
| Current - Supply | 30 ~ 40mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 65°C |
| Approval Agency | UL, UR |
| Ratings | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount |
| Termination | Wire Leads |
| Size / Dimension | 1.858" Dia (47.20mm) |
| Height - Seated (Max) | 1.550" (39.37mm) |
Submit your RFQ for CAN96930H and get a quote within 24 hours.
