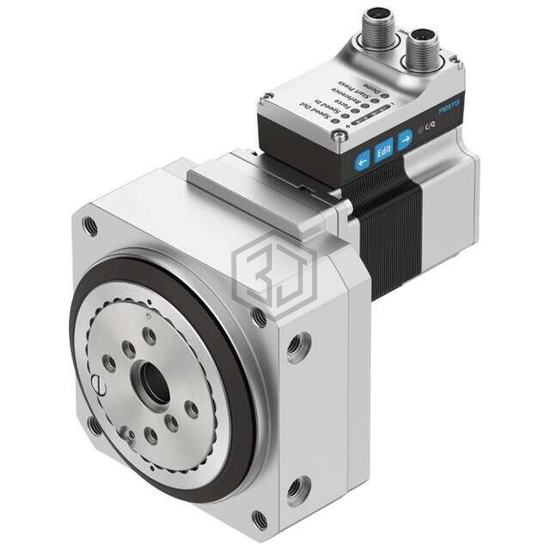

ROTARY DRIVE UNIT
ERMS-32-180-ST-M-H1-PLK-AA is a Stepper Motors manufactured by Festo Corporation. ROTARY DRIVE UNIT. Key specifications: operating temperature 0°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 5.3 A, size / dimension Rectangular - 5.425" x 4.134" (137.80mm x 105.00mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 5.3 A |
| Steps per Revolution | 2 |
| Step Angle | 180° |
| Accuracy | ±0.1% |
| Torque - Holding (oz-in / mNm) | 793.20 / 5600 |
| Size / Dimension | Rectangular - 5.425" x 4.134" (137.80mm x 105.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | - |
| Length - Shaft and Bearing | 0.472" (12.00mm) |
| Mounting Hole Spacing | 3.346" (85.00mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | 0°C ~ 50°C |
| Coil Resistance | - |
| Features | Round Shaft |
Submit your RFQ for ERMS-32-180-ST-M-H1-PLK-AA and get a quote within 24 hours.
