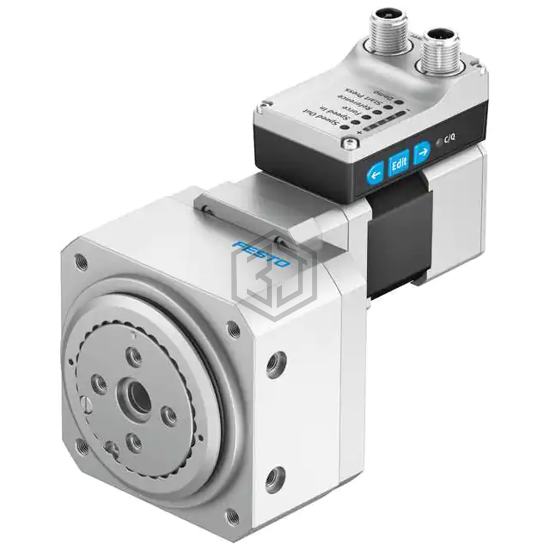

ROTARY DRIVE UNIT
ERMS-25-90-ST-M-H1-PLK-AA is a Stepper Motors manufactured by Festo Corporation. ROTARY DRIVE UNIT. Key specifications: operating temperature 0°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 3 A, size / dimension Rectangular - 4.563" x 3.268" (115.90mm x 83.00mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 3 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±0.05% |
| Torque - Holding (oz-in / mNm) | 382.4 / 2700 |
| Size / Dimension | Rectangular - 4.563" x 3.268" (115.90mm x 83.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | - |
| Length - Shaft and Bearing | 0.394" (10.00mm) |
| Mounting Hole Spacing | 2.560" (65.00mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | 0°C ~ 50°C |
| Coil Resistance | - |
| Features | Round Shaft |
Submit your RFQ for ERMS-25-90-ST-M-H1-PLK-AA and get a quote within 24 hours.
