P-CHANNEL POWER MOSFET

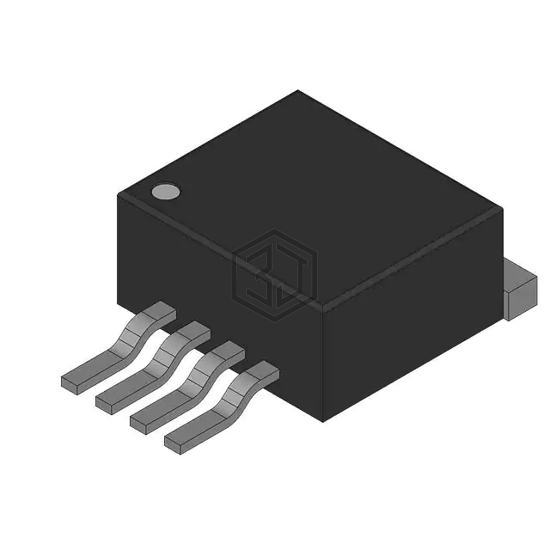

RF3S49092SM9A is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. P-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, power - max 50W (Tc).
In Stock: 2,259
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc), 10A (Tc) |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 20A, 5V, 140mOhm @ 10A, 5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 10V, 24nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 750pF @ 10V, 775pF @ 10V |
| Power - Max | 50W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 |
Submit your RFQ for RF3S49092SM9A and get a quote within 24 hours.
