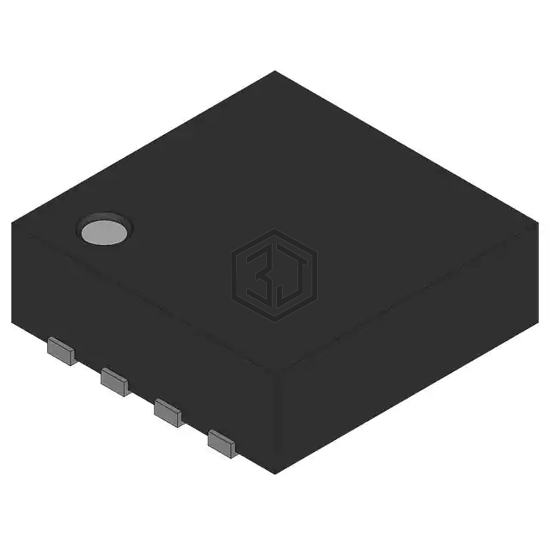

IC GATE NAND 2CH 2-INP 8MICROPAK
NC7WZ132L8X is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. IC GATE NAND 2CH 2-INP 8MICROPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 8-UFQFN.
In Stock: 159,337
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.2V ~ 1.2V |
| Logic Level - High | 1.4V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | 4.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MicroPak™ |
| Package / Case | 8-UFQFN |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NC7SZ00FHX | Fairchild Semiconductor | IC GATE NAND 1CH 2-IN 6MICROPAK2 | 88% | View |
| 74LVC2G38GD,125 | NXP USA Inc. | IC GATE NAND OD 2CH 2-INP 8XSON | 81% | View |
| SN74LVC1G132DBVR | Texas Instruments | IC GATE NAND 1CH 2-INP SOT23-5 | 79% | View |
| 74LVC2G00GN,115 | NXP USA Inc. | IC GATE NAND 2CH 2-INP 8XSON | 78% | View |
| SN74LVC2G00DCT3 | Texas Instruments | IC GATE NAND 2CH 2-INP SM8 | 78% | View |
| SN74LVC1G00DRYR | Texas Instruments | IC GATE NAND 1CH 2-INP 6SON | 76% | View |
Submit your RFQ for NC7WZ132L8X and get a quote within 24 hours.
