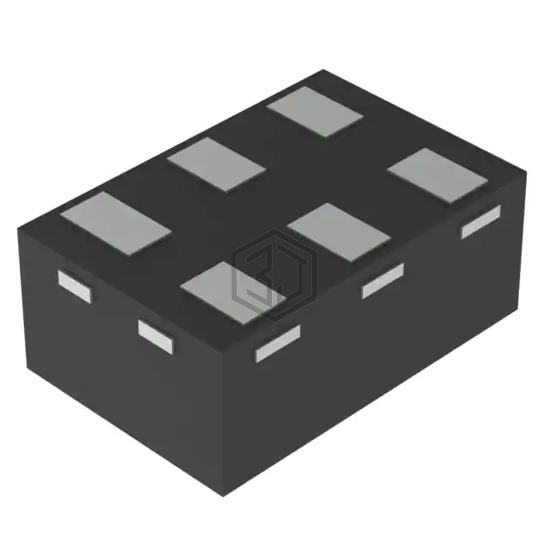

IC GATE NAND 1CH 2-INP 6SON
SN74LVC1G00DRYR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 1CH 2-INP 6SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-UFDFN.
In Stock: 4,271
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SON (1.45x1) |
| Package / Case | 6-UFDFN |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G00DCKTG4 | Texas Instruments | IC GATE NAND 1CH 2-INP SC70-5 | 100% | View |
| SN74LVC2G00DCT3 | Texas Instruments | IC GATE NAND 2CH 2-INP SM8 | 94% | View |
| SN74LVC1G132DBVR | Texas Instruments | IC GATE NAND 1CH 2-INP SOT23-5 | 92% | View |
| 74LVC2G00GF,115 | Nexperia USA Inc. | IC GATE NAND 2CH 2-INP 8XSON | 86% | View |
| 74LVC2G00GN,115 | NXP USA Inc. | IC GATE NAND 2CH 2-INP 8XSON | 86% | View |
| NL27WZ00US | onsemi | IC GATE NAND 2CH 2-INP US8 | 79% | View |
Submit your RFQ for SN74LVC1G00DRYR and get a quote within 24 hours.
