SPDT, 1 CHANNEL, CMOS, PBGA8

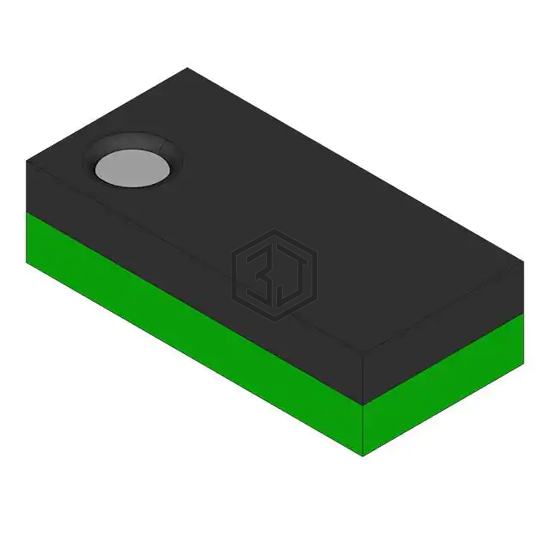

FSA859UCX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Fairchild Semiconductor. SPDT, 1 CHANNEL, CMOS, PBGA8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFBGA, WLCSP, number of circuits 1.
In Stock: 3,934
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 20ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 70pC |
| Channel Capacitance (CS(off), CD(off)) | 50pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -55dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFBGA, WLCSP |
| Supplier Device Package | 8-WLCSP (1.91x0.91) |
FSA859UCX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TS5A6542YZPR | Texas Instruments | IC SWITCH SPDT 8DSBGA | 79% | View |
| MAX4781EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TSSOP | 76% | View |
| TS5A26542YZTR | Texas Instruments | IC SWITCH DUAL SPDT 12DSBGA | 73% | View |
| ISL43210IHZ-T | Renesas Electronics America Inc | IC SWITCH SPDT SOT23-6 | 59% | View |
| ADG812YRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 59% | View |
| MAX4736EGC+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 12QFN | 54% | View |
Submit your RFQ for FSA859UCX and get a quote within 24 hours.
