Analog Devices Inc./Maxim Integrated

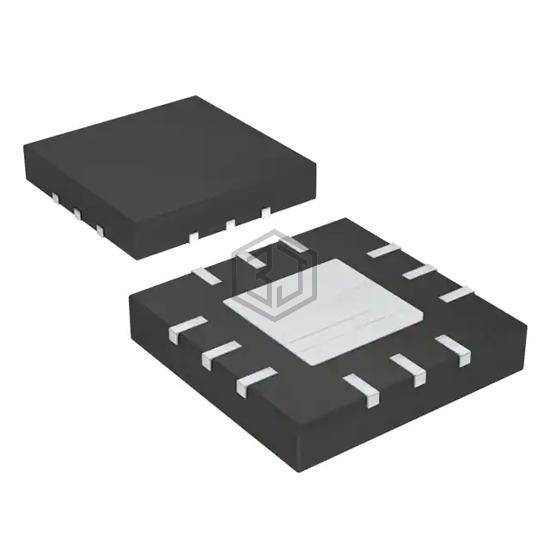

IC SWITCH DUAL SPDT 12QFN
MAX4736EGC+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH DUAL SPDT 12QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-VFQFN Exposed Pad, number of circuits 2.
In Stock: 5,542
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 800mOhm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.6V ~ 4.2V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 20ns |
| -3db Bandwidth | 130MHz |
| Charge Injection | 60pC |
| Channel Capacitance (CS(off), CD(off)) | 33pF, 60pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -78dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFQFN Exposed Pad |
| Supplier Device Package | 12-QFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4736EGC+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 12QFN | 100% | View |
| MAX4784EUE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER QUAD 2X1 16TSSOP | 93% | View |
| ADG812YRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 82% | View |
| MAX4781EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TSSOP | 81% | View |
| ISL8499IRZ | Intersil | ULTRA LOW ON-RESISTANCE, SINGLE | 57% | View |
| ISL43210IHZ-T | Renesas Electronics America Inc | IC SWITCH SPDT SOT23-6 | 54% | View |
Submit your RFQ for MAX4736EGC+T and get a quote within 24 hours.
