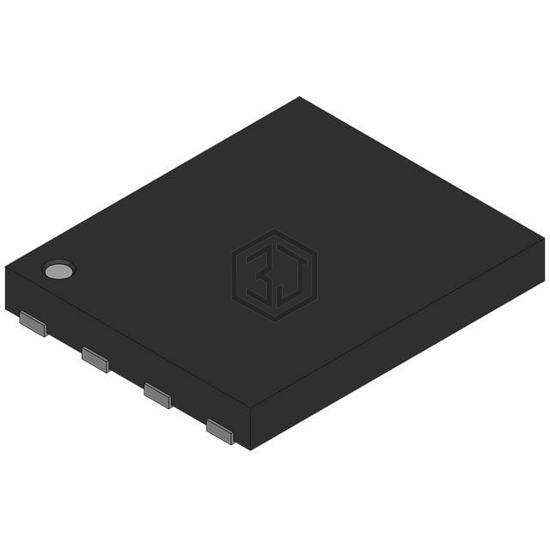

DUAL OUTPUT CURRENT LIMIT SWITCH
FPF2303MPX is a PMIC - Power Distribution Switches, Load Drivers manufactured by Fairchild Semiconductor. DUAL OUTPUT CURRENT LIMIT SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 8-WDFN Exposed Pad.
In Stock: 5,580
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:2 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.1A |
| Rds On (Typ) | 75mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MLP (3x3) |
| Package / Case | 8-WDFN Exposed Pad |
FPF2303MPX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SI1865DDL-T1-BE3 | Vishay Siliconix | IC PWR SWITCH P-CHAN 1:1 SC70-6 | 88% | View |
| TCK22893G,LF | Toshiba Semiconductor and Storage | IC PWR SWITCH P-CHAN 1:1 WCSP6E | 83% | View |
| MIC94093YC6-TR | Microchip Technology | IC PWR SWITCH P-CHAN 1:1 SC70-6 | 83% | View |
| TCK2065G,LF | Toshiba Semiconductor and Storage | IC PWR SWITCH P-CHAN 1:1 WCSP6E | 83% | View |
| MIC2097-2YMT-TR | Microchip Technology | IC PWR SWITCH P-CHAN 1:1 6TMLF | 82% | View |
| MIC2099-1YMT-TR | Microchip Technology | IC PWR SWITCH P-CHAN 1:1 6TMLF | 82% | View |
Submit your RFQ for FPF2303MPX and get a quote within 24 hours.
