CURRENT LIMIT LOAD SWITCH

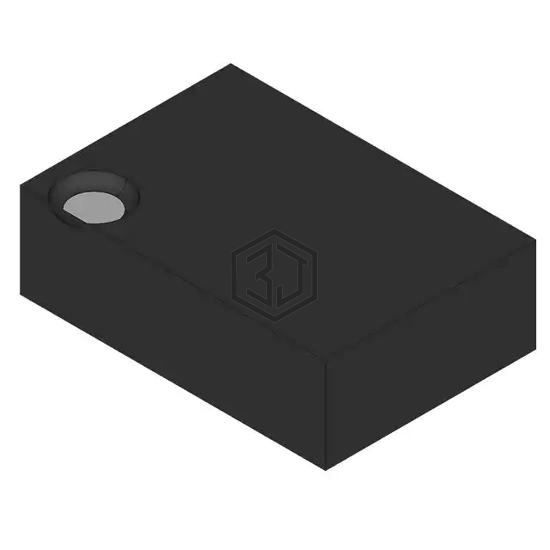

FPF2214 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Fairchild Semiconductor. CURRENT LIMIT LOAD SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-VDFN Exposed Pad.
In Stock: 2,583
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 250mA |
| Rds On (Typ) | 250mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroFET (2x2) |
| Package / Case | 6-VDFN Exposed Pad |
FPF2214 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FPF2213 | onsemi | IC PWR SWITCH P-CH 1:1 6MICROFET | 100% | View |
| FPF2215 | onsemi | IC PWR SWITCH P-CH 1:1 6MICROFET | 100% | View |
| MAX892LEUA+ | Analog Devices Inc./Maxim Integrated | IC PWR SWITCH P-CHAN 1:1 8UMAX | 93% | View |
| XC8101AA01NR-G | Torex Semiconductor Ltd | IC PWR SWITCH P-CHAN 1:1 SSOT24 | 91% | View |
| AP21410FM-7 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 6UDFN | 84% | View |
| MAX895LESA+T | Analog Devices Inc./Maxim Integrated | IC PWR SWITCH P-CHAN 1:2 8SOIC | 81% | View |
Submit your RFQ for FPF2214 and get a quote within 24 hours.
