N-CHANNEL POWER MOSFET

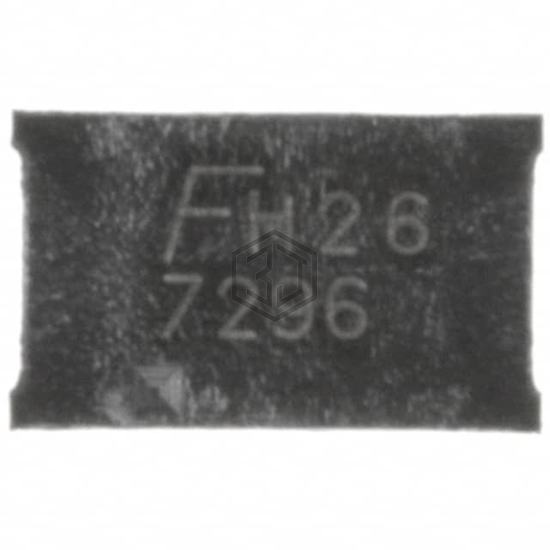

FDZ2553N is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. N-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 18-WFBGA, power - max 2.1W.
In Stock: 135,576
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 9.6A |
| Rds On (Max) @ Id, Vgs | 14mOhm @ 9.6A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1299pF @ 10V |
| Power - Max | 2.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 18-WFBGA |
| Supplier Device Package | 18-BGA (2.5x4) |
Submit your RFQ for FDZ2553N and get a quote within 24 hours.
