SMALL SIGNAL P-CHANNEL MOSFET

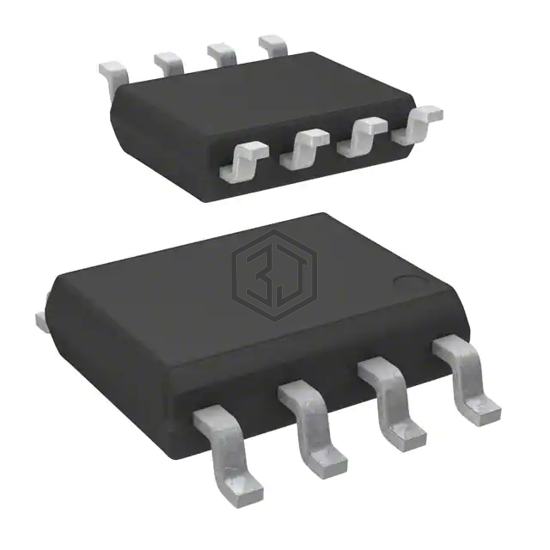

FDR8702H is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. SMALL SIGNAL P-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TSOP (0.130", 3.30mm Width), power - max 800mW.
In Stock: 254,870
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3.6A, 2.6A |
| Rds On (Max) @ Id, Vgs | 38mOhm @ 3.6A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 650pF @ 10V |
| Power - Max | 800mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSOP (0.130", 3.30mm Width) |
| Supplier Device Package | SuperSOT™-8 |
Submit your RFQ for FDR8702H and get a quote within 24 hours.
