HALF BRIDGE BASED MOSFET DRIVER

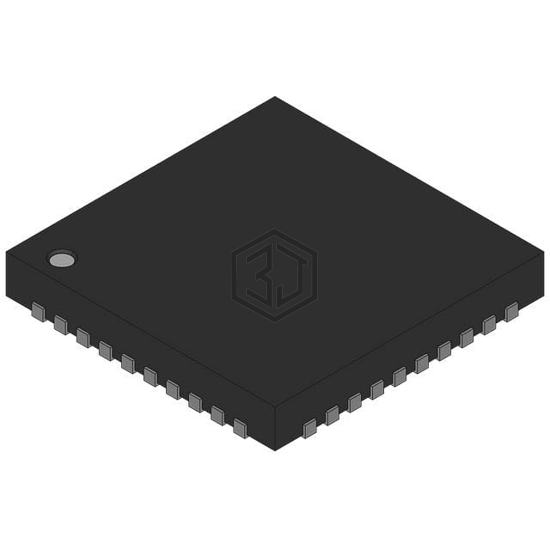

FDMF6820C is a PMIC - Full, Half-Bridge Drivers manufactured by Fairchild Semiconductor. HALF BRIDGE BASED MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 40-TFQFN Exposed Pad.
In Stock: 15,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | Logic, PWM |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | DrMOS, Power MOSFET |
| Rds On (Typ) | 1Ohm LS, 1Ohm HS |
| Current - Output / Channel | 50A |
| Current - Peak Output | 50A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 40-TFQFN Exposed Pad |
| Supplier Device Package | 40-PQFN (6x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SIC788CD-T1-GE3 | Vishay Siliconix | 50A VRPOWER INTEGRATED POWER ST | 100% | View |
| SIC632CD-T1-GE3 | Vishay Siliconix | IC CTLR STAGE 50A 5V PWM PPAK ML | 100% | View |
| SIC632ACD-T1-GE3 | Vishay Siliconix | IC CTLR STAGE 50A 3.3V PWM PPAK | 100% | View |
| FDMF3035 | onsemi | IC SPS HALF-BRIDGE DRVR 31PQFN | 100% | View |
| FDMF6707C | onsemi | MODULE DRMOS 50A 40-PQFN | 93% | View |
| FDMF6821C | Fairchild Semiconductor | SWITCHING REG, VOLTAGE-MODE, 50A | 93% | View |
Submit your RFQ for FDMF6820C and get a quote within 24 hours.
