SMALL SIGNAL N-CHANNEL MOSFET

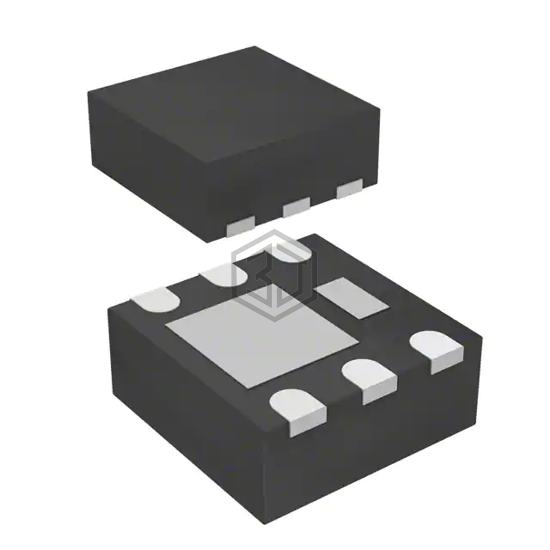

FDM2509NZ is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. SMALL SIGNAL N-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad, power - max 800mW.
In Stock: 4,849
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 8.7A |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 8.7A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1200pF @ 10V |
| Power - Max | 800mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad |
| Supplier Device Package | MicroFET 2x2 Thin |
Submit your RFQ for FDM2509NZ and get a quote within 24 hours.
