SMALL SIGNAL P-CHANNEL MOSFET

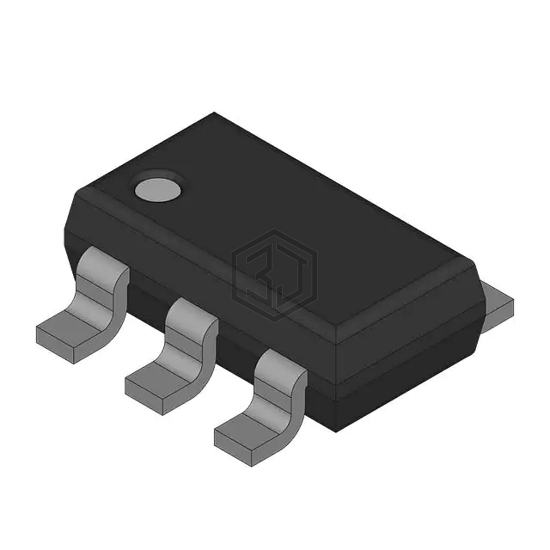

FDC6432SH is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. SMALL SIGNAL P-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6 Thin, TSOT-23-6, power - max 700mW.
In Stock: 60,158
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V, 12V |
| Current - Continuous Drain (Id) @ 25°C | 2.4A, 2.5A |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 2.4A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 3.5nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 270pF @ 15V |
| Power - Max | 700mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | SuperSOT™-6 |
Submit your RFQ for FDC6432SH and get a quote within 24 hours.
