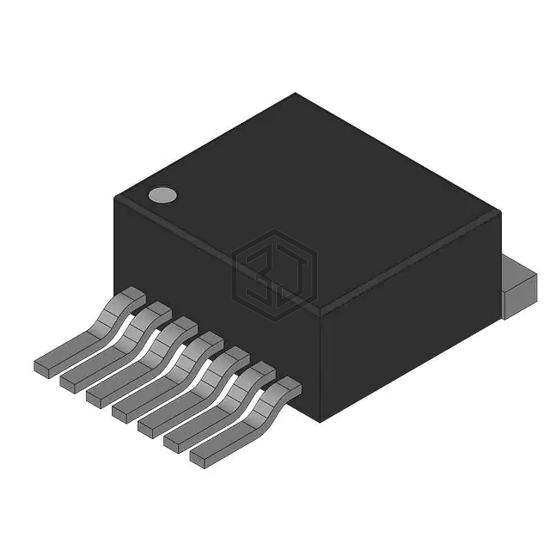

IC DIODE HALF BRIDGE PN D2PAK-7
FAN7093 is a PMIC - Full, Half-Bridge Drivers manufactured by Fairchild Semiconductor. IC DIODE HALF BRIDGE PN D2PAK-7. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 7V ~ 18V, package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.
In Stock: 7,205
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | DMOS |
| Rds On (Typ) | 18.2mOhm LS (Max), 12.3mOhm HS (Max) |
| Current - Output / Channel | 46A |
| Current - Peak Output | 88A |
| Voltage - Supply | 7V ~ 18V |
| Voltage - Load | 7V ~ 18V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Latch Function, Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | TO-263-7 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FAN7093-F085 | Fairchild Semiconductor | IC DRVR HALF BRIDGE PN 8-TO263 | 100% | View |
| CSD95373BQ5M | Texas Instruments | IC SYNC BUCK NEXFET 12SON | 83% | View |
| CSD95373BQ5MT | Texas Instruments | IC SYNC BUCK NEXFET 12SON | 83% | View |
| FDMF6707V | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 82% | View |
| FDMF6823C | onsemi | MODULE DRMOS 50A 40-PQFN | 74% | View |
| FDMF6706B | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 74% | View |
Submit your RFQ for FAN7093 and get a quote within 24 hours.
