FULL BRIDGE PERIPHERAL DRIVER

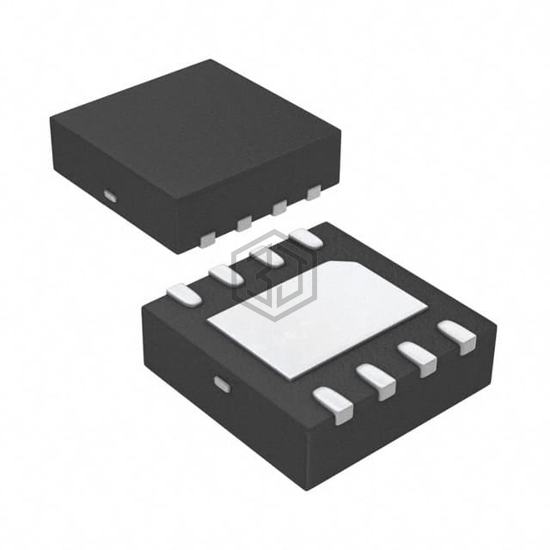

FAN3228CMPX is a PMIC - Gate Drivers manufactured by Fairchild Semiconductor. FULL BRIDGE PERIPHERAL DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 18V, package / case 8-WDFN Exposed Pad.
In Stock: 17,142
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 12ns, 9ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-MLP (3x3) |
FAN3228CMPX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14A0305T-E/MS | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8MSOP | 100% | View |
| MCP14A0303T-E/SN | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 100% | View |
| MIC4125YML-TR | Microchip Technology | IC GATE DRVR LOW-SIDE 8MLF | 99% | View |
| LM5111-3M | National Semiconductor | BUFFER/INVERTER BASED PERIPHERAL | 94% | View |
| TC4425EMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 90% | View |
| TC4425EOE713 | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 90% | View |
Submit your RFQ for FAN3228CMPX and get a quote within 24 hours.
