FIXED IND 6.8UH 6.4A 21MOHM SMD

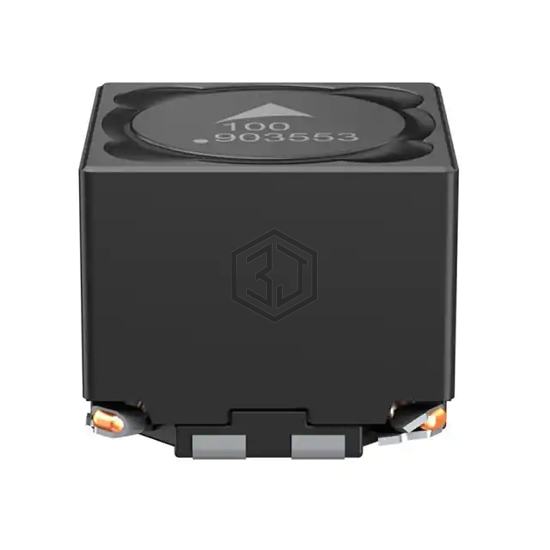

B82477D6682M603 is a Arrays, Signal Transformers manufactured by EPCOS - TDK Electronics. FIXED IND 6.8UH 6.4A 21MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 220
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 6.8 µH |
| Inductance - Connected In Series | 27.2 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | - |
| Current Rating - Series | 6.4 A |
| Current Saturation - Parallel | 10 A |
| Current Saturation - Series | 5 A |
| DC Resistance (DCR) - Parallel | 10.5mOhm Max |
| DC Resistance (DCR) - Series | 42mOhm Max |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.413" (10.50mm) |
Submit your RFQ for B82477D6682M603 and get a quote within 24 hours.
