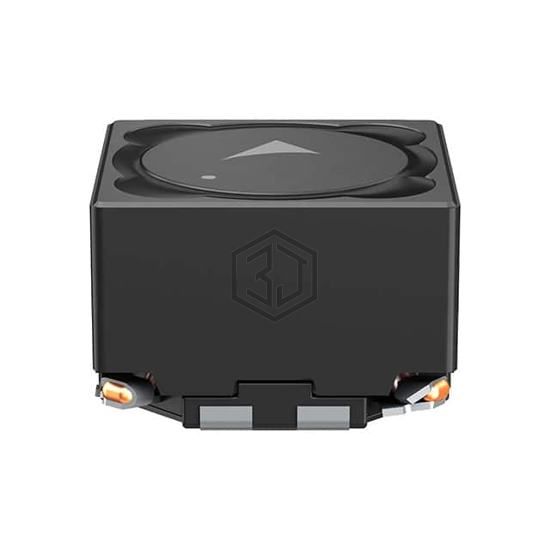

FIXED IND 100UH 1.61A 280 MOHM
B82477D4104M900 is a Arrays, Signal Transformers manufactured by EPCOS - TDK Electronics. FIXED IND 100UH 1.61A 280 MOHM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, size / dimension 0.492" L x 0.492" W (12.50mm x 12.50mm).
In Stock: 585
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 100 µH |
| Inductance - Connected In Series | 400 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | - |
| Current Rating - Series | 1.61 A |
| Current Saturation - Parallel | 2.2 A |
| Current Saturation - Series | 1.1 A |
| DC Resistance (DCR) - Parallel | 140mOhm Max |
| DC Resistance (DCR) - Series | 560mOhm Max |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.335" (8.50mm) |
Submit your RFQ for B82477D4104M900 and get a quote within 24 hours.
