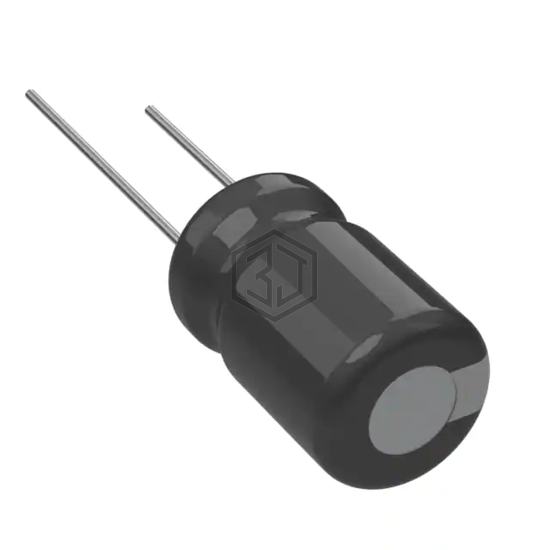

CAP ALUM 22UF 20% 450V RADIAL
B43890C5226M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 5,801
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 588 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
B43890C5226M003 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43858B5226M004 | EPCOS - TDK Electronics | CAP ALUM 450V POLAR | 99% | View |
| UCS2G220MHD | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 87% | View |
| 420TXW22MEFR8X50 | Rubycon | CAP ALUM 22UF 20% 420V RADIAL TH | 83% | View |
| EKMG451ELL220ML25S | United Chemi-Con | CAP ALUM 22UF 20% 450V RADIAL | 66% | View |
| MAL211671229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 50V RADIAL | 56% | View |
| 16MH522MEFCT55X5 | Rubycon | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for B43890C5226M003 and get a quote within 24 hours.
