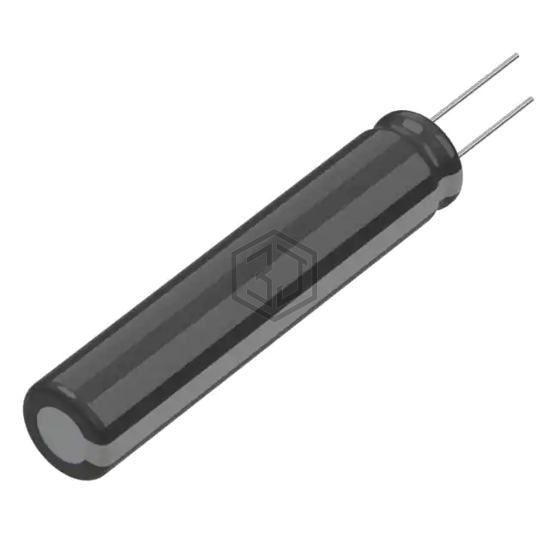

CAP ALUM 22UF 20% 420V RADIAL TH
420TXW22MEFR8X50 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 420V RADIAL TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can.
In Stock: 4,184
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 375 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 2.067" (52.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400BXW22MEFR10X25 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL | 86% | View |
| UAS2G220MHD1TD | Nichicon | CAP ALUM 22UF 20% 200V RADIAL TH | 80% | View |
| UCS2G220MHD | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 72% | View |
| ESH226M016AC3DA | KEMET | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
| 160YXF22MEFCT810X20 | Rubycon | CAP ALUM 22UF 20% 160V RADIAL | 56% | View |
| EEU-FM1H220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 55% | View |
Submit your RFQ for 420TXW22MEFR8X50 and get a quote within 24 hours.
