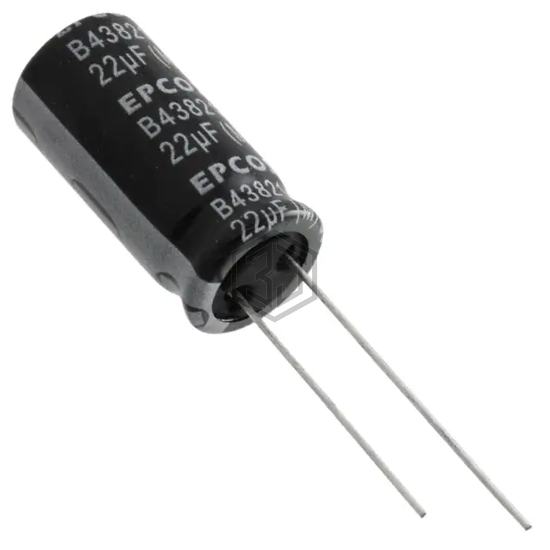

CAP ALUM 22UF 20% 350V RADIAL
B43821A4226M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 22UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 3,153
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 15Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2V220MPD9 | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 98% | View |
| EEU-EE2G220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 400V RADIAL | 85% | View |
| ECA-2EM220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 250V RADIAL | 83% | View |
| URS2E220MHD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 75% | View |
| 200CFX22MEFC10X16 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 74% | View |
| EEU-FC1J220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V RADIAL | 63% | View |
Submit your RFQ for B43821A4226M000 and get a quote within 24 hours.
