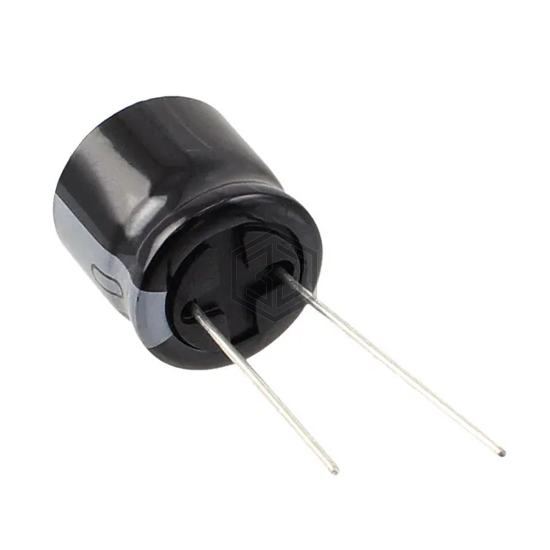

CAP ALUM 22UF 20% 250V RADIAL
URS2E220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 8,225
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 448 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2V220MPD9 | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 82% | View |
| ULD2W220MHD1TO | Nichicon | CAP ALUM 22UF 20% 450V RADIAL | 78% | View |
| UCY2H220MHD6TN | Nichicon | CAP ALUM 22UF 20% 500V RADIAL | 74% | View |
| RXQ220M2CBK-1016S | Surge | CAP ALUM 160V POLAR | 73% | View |
| NEH22M100CC | NTE Electronics, Inc | CAP ALUM 22UF 20% 100V AXIAL | 56% | View |
| NEH22M16AA | NTE Electronics, Inc | CAP ALUM 22UF 20% 16V AXIAL | 56% | View |
Submit your RFQ for URS2E220MHD and get a quote within 24 hours.
