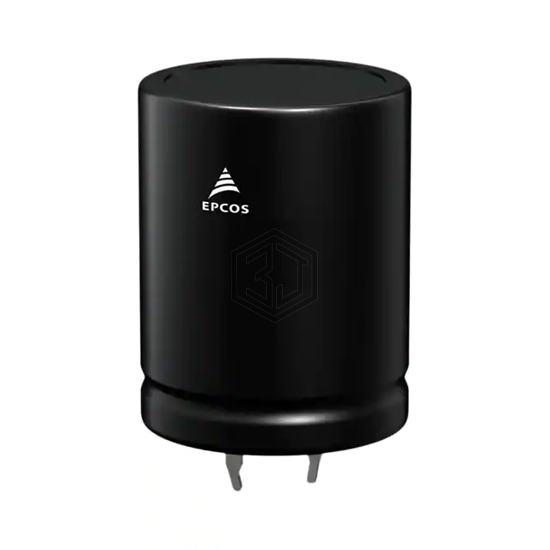

CAP ALUM 100UF 20% 450V SNAP
B43642A5107M062 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 100UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In - 3 Lead.
In Stock: 8,070
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 820mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 690 mA @ 100 Hz |
| Ripple Current @ High Frequency | 3.9 A @ 10 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 3 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ351ELL101MUP1S | United Chemi-Con | CAP ALUM 100UF 20% 350V RADIAL | 70% | View |
| EKWA401ELL101MLN3S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 69% | View |
| ALC70A101CC630 | KEMET | CAP ALUM 100UF 20% 630V SNAP | 68% | View |
| 250WXA100MEFCGC18X25 | Rubycon | CAP ALUM 100UF 20% 250V RADIAL | 62% | View |
| UAS2G101MHD | Nichicon | CAP ALUM 100UF 20% 400V RADIAL | 62% | View |
| 500D107M025CC2A | Vishay Sprague | CAP ALUM 100UF 20% 25V AXIAL | 56% | View |
Submit your RFQ for B43642A5107M062 and get a quote within 24 hours.
