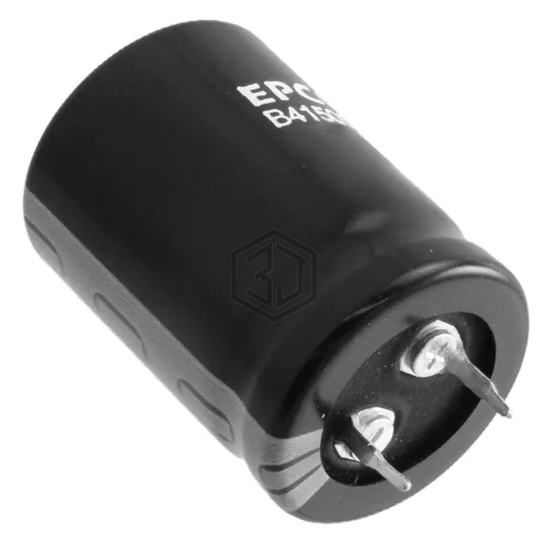

CAP ALUM 680UF 20% 200V SNAP
B43508B2687M007 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 680UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 2,072
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 170mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.68 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 230 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.465" (37.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
B43508B2687M007 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504F2687M80 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 95% | View |
| LGN2P681MELA35 | Nichicon | CAP ALUM 680UF 20% 220V SNAP | 94% | View |
| LGU2P681MELC | Nichicon | CAP ALUM 680UF 20% 220V SNAP | 94% | View |
| LGU2C681MELZ | Nichicon | CAP ALUM 680UF 20% 160V SNAP | 88% | View |
| EGPD630ELL681ML20H | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL | 63% | View |
| EKYC500ELL681MK20S | United Chemi-Con | CAP ALUM 680UF 20% 50V RADIAL | 63% | View |
