CAP ALUM 680UF 20% 220V SNAP

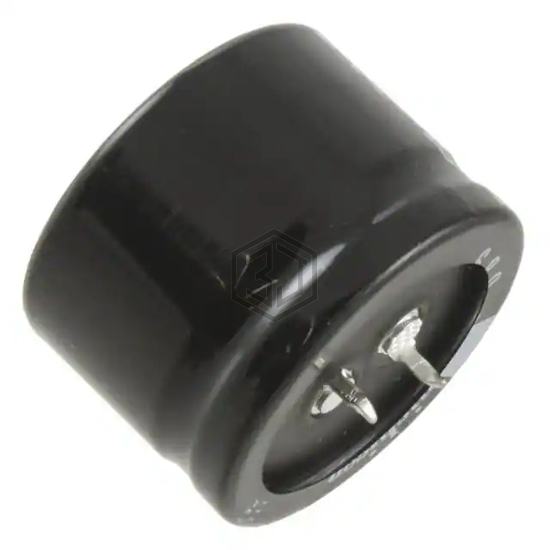

LGU2P681MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 220V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can - Snap-In.
In Stock: 3,114
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.67 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2P681MELA35 | Nichicon | CAP ALUM 680UF 20% 220V SNAP | 100% | View |
| B43504F2687M80 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 92% | View |
| 50ZLH680MEFC12.5X30 | Rubycon | CAP ALUM 680UF 20% 50V RADIAL | 67% | View |
| EGPD630ELL681ML20H | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL | 66% | View |
| B41866D8687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 63V RADIAL | 57% | View |
| MAL216358681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 385V SNAP | 57% | View |
Submit your RFQ for LGU2P681MELC and get a quote within 24 hours.
