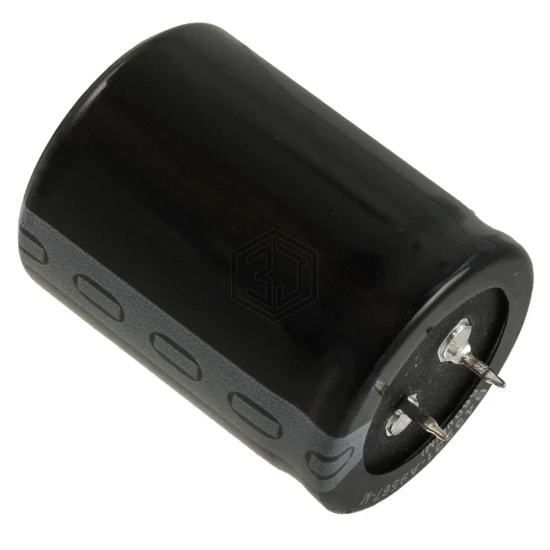

CAP ALUM 1800UF 20% 200V SNAP
B43504F2188M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1800UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 7,814
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.9 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 100 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504F2188M67 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 200V SNAP | 100% | View |
| B43504E2188M60 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 200V SNAP | 100% | View |
| LGU2D182MELC | Nichicon | CAP ALUM 1800UF 20% 200V SNAP | 96% | View |
| LGG2D182MELB45 | Nichicon | CAP ALUM 1800UF 20% 200V SNAP | 88% | View |
| LGG2C182MELC30 | Nichicon | CAP ALUM 1800UF 20% 160V SNAP | 77% | View |
| UBY1J182MHL | Nichicon | CAP ALUM 1800UF 20% 63V RADIAL | 56% | View |
Submit your RFQ for B43504F2188M000 and get a quote within 24 hours.
