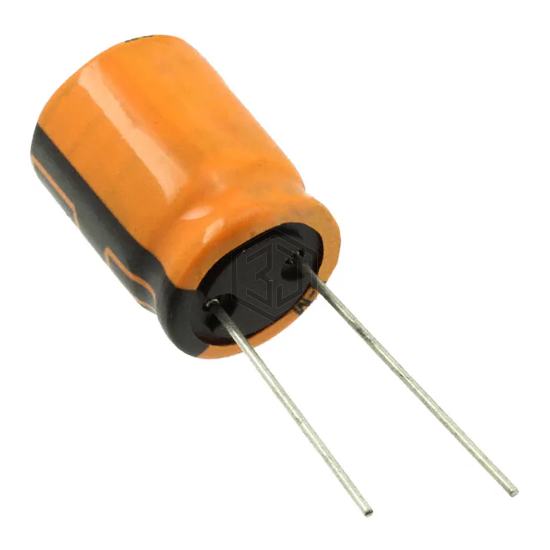

CAP ALUM 470UF 20% 50V RADIAL
B41896D6477M is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 470UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,424
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 269mOhm @ 120Hz |
| Lifetime @ Temp. | 7000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.28 A @ 100 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214091473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 83% | View |
| MAL214650471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 66% | View |
| MAL211848471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V T/H | 64% | View |
| MAL211947471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 40V AXIAL | 64% | View |
| MAL226030471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 56% | View |
| B41896C5477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 25V RADIAL | 53% | View |
