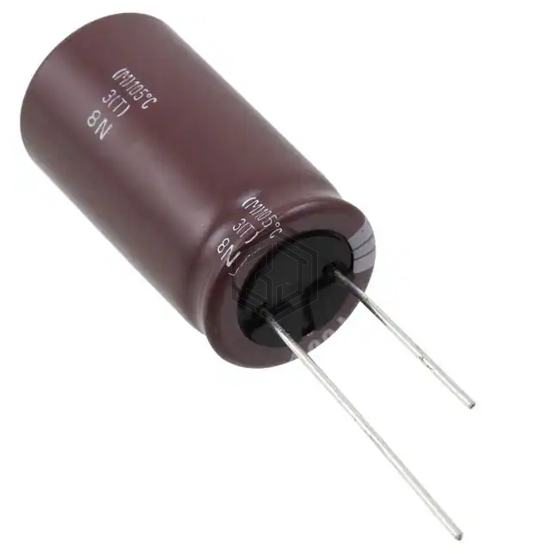

CAP ALUM 3900UF 20% 25V RADIAL
ELXV250ELL392MM35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,776
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.135 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.05 A @ 100 kHz |
| Impedance | 21 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK392M1EBK-1836S | Surge | CAP ALUM 25V POLAR | 95% | View |
| ELXZ250ELL392MM30S | United Chemi-Con | CAP ALUM 3900UF 20% 25V RADIAL | 93% | View |
| RXK392M1EBK-1640S | Surge | CAP ALUM 25V POLAR | 93% | View |
| EEU-FC1C392B | Panasonic Electronic Components | CAP ALUM 3900UF 20% 16V RADIAL | 84% | View |
| ELXV160ELL392ML30S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 78% | View |
| MAL214655392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V RADIAL | 77% | View |
