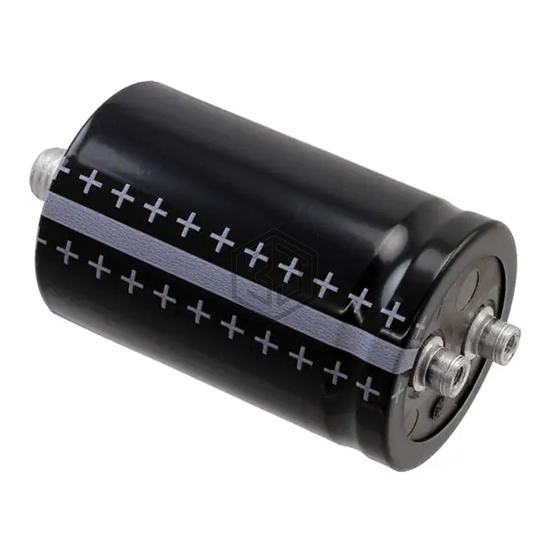

CAP ALUM 10000UF 63V SCREW
B41570E8109Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 10000UF 63V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 63 V, package / case Radial, Can - Screw Terminals, size / dimension 2.032" Dia (51.60mm).
In Stock: 6,812
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 18mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 14 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.032" Dia (51.60mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41570E8109Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D101HPN103MC79U | United Chemi-Con | CAP ALUM 10000UF 20% 100V SCREW | 80% | View |
| HVMLS103M020EA0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 20V FLATPCK | 70% | View |
| ALS81C103QM350 | KEMET | CAP ALUM 10000UF 20% 350V SCREW | 68% | View |
| LNT1K103MSE | Nichicon | CAP ALUM 10000UF 20% 80V SCREW | 62% | View |
| MAL210236103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 400V SCREW | 58% | View |
| B43733A4109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 350V SCREW | 50% | View |
Submit your RFQ for B41570E8109Q000 and get a quote within 24 hours.
