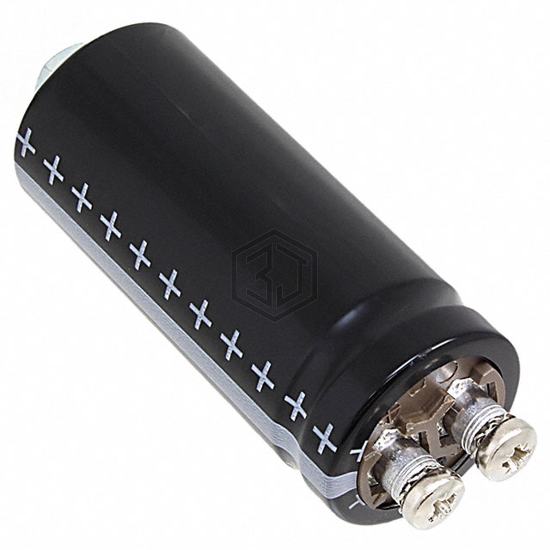

CAP ALUM 10000UF 25V SCREW
B41570E5109Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 10000UF 25V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 25 V, package / case Radial, Can - Screw Terminals, size / dimension 1.406" Dia (35.70mm).
In Stock: 5,372
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 28mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.5 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 21 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41570E5109Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS30A103DA040 | KEMET | CAP ALUM 10000UF 20% 40V SCREW | 82% | View |
| HVMLS103M020EA0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 20V FLATPCK | 71% | View |
| ALS80H103DB063 | KEMET | CAP ALUM 10000UF 20% 63V SCREW | 66% | View |
| LNT1K103MSE | Nichicon | CAP ALUM 10000UF 20% 80V SCREW | 61% | View |
| E32D101HPN103MC79U | United Chemi-Con | CAP ALUM 10000UF 20% 100V SCREW | 55% | View |
| E36D201HPS103MDA5U | United Chemi-Con | CAP ALUM 10000UF 20% 200V SCREW | 54% | View |
