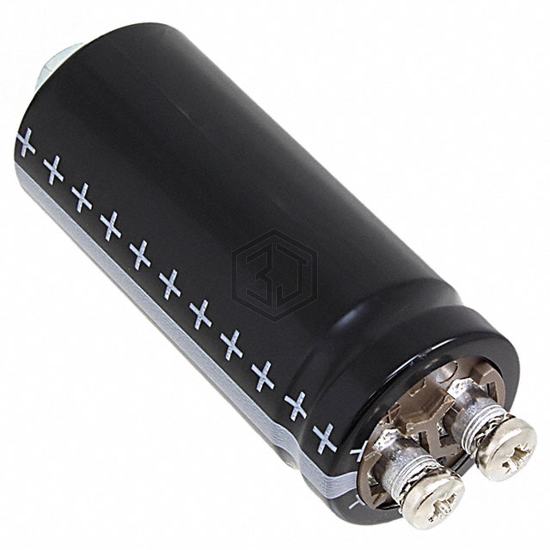

CAP ALUM 15000UF 16V SCREW
B41570E4159Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 15000UF 16V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 16 V, package / case Radial, Can - Screw Terminals, size / dimension 1.406" Dia (35.70mm).
In Stock: 2,175
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 26mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.1 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 21 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41570E4159Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 36DX153G015AB2A | Vishay Sprague | CAP ALUM 15000UF 15V SCREW | 96% | View |
| CGS153U016R4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 16V SCREW | 81% | View |
| MAL205017153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 40V SOLDER LUG | 70% | View |
| E36D630HPN153MC54U | United Chemi-Con | CAP ALUM 15000UF 20% 63V SCREW | 63% | View |
| LNR1J153MSE | Nichicon | CAP ALUM 15000UF 20% 63V SCREW | 59% | View |
| E36D500LPN153UC79U | United Chemi-Con | CAP ALUM 15000UF 50V SCREW | 56% | View |
Submit your RFQ for B41570E4159Q000 and get a quote within 24 hours.
