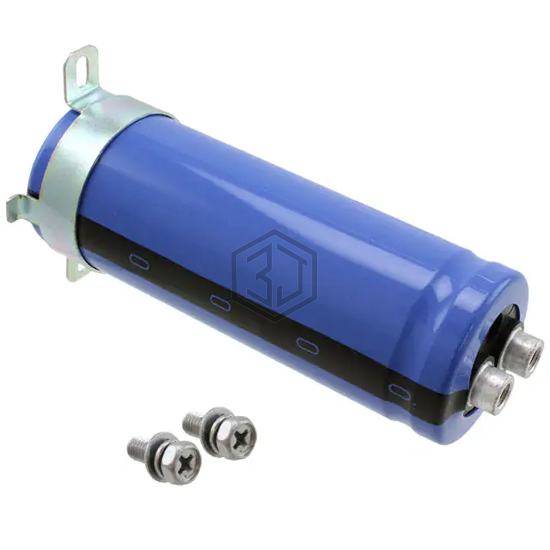

CAP ALUM 15000UF 20% 63V SCREW
LNR1J153MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,842
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.325 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D630HPN153MC54U | United Chemi-Con | CAP ALUM 15000UF 20% 63V SCREW | 89% | View |
| E36D500LPN153UC79U | United Chemi-Con | CAP ALUM 15000UF 50V SCREW | 85% | View |
| MAL205017153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 40V SOLDER LUG | 75% | View |
| CGS153U016R4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 16V SCREW | 72% | View |
| E36D101LPN153TCB7U | United Chemi-Con | CAP ALUM 15000UF 100V SCREW | 70% | View |
| MAL210618153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 63V SCREW | 68% | View |
