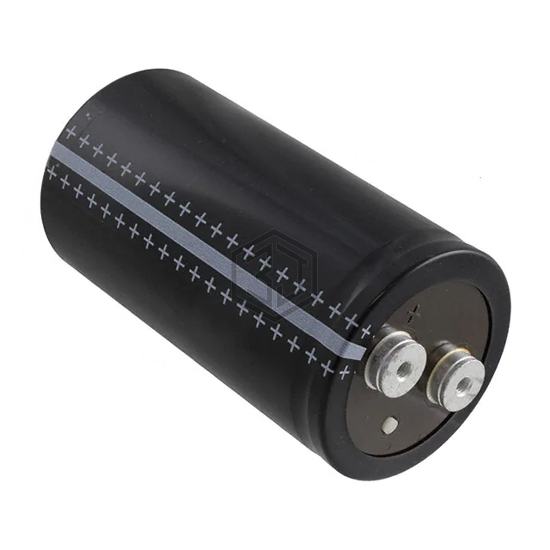

CAP ALUM 220000UF 20% 40V SCREW
B41458B7220M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 220000UF 20% 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,946
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 5mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 5.4 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 5.677" (144.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210147224E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220000UF 20% 40V SCREW | 98% | View |
| LNT1H224MSEN | Nichicon | CAP ALUM 220000UF 20% 50V SCREW | 87% | View |
| LNR1V224MSE | Nichicon | CAP ALUM 220000UF 20% 35V SCREW | 82% | View |
| MAL210186224E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220000UF 20% 25V SCREW | 80% | View |
| B41458B5220M000 | EPCOS - TDK Electronics | CAP ALUM 220000UF 20% 25V SCREW | 79% | View |
| ALS80C224NS063 | KEMET | CAP ALUM 220000UF 20% 63V SCREW | 75% | View |
Submit your RFQ for B41458B7220M003 and get a quote within 24 hours.
