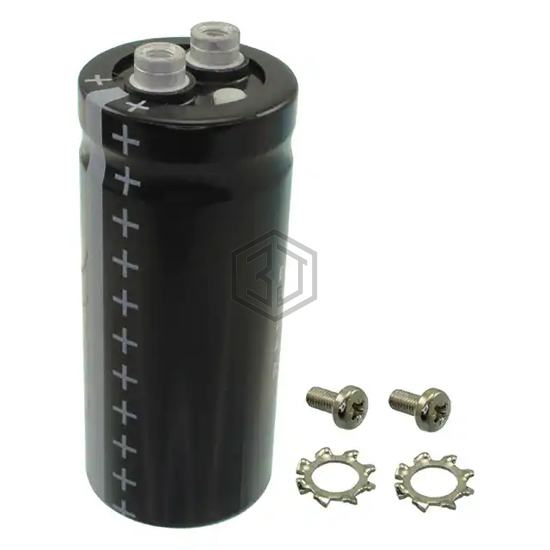

CAP ALUM 10000UF 20% 63V SCREW
B41456B8109M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 10000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,178
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 31mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 30 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.177" (80.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41456B8109M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS81H103DB063 | KEMET | CAP ALUM 10000UF 20% 63V SCREW | 96% | View |
| ALS80H103DB063 | KEMET | CAP ALUM 10000UF 20% 63V SCREW | 96% | View |
| LNT1K103MSE | Nichicon | CAP ALUM 10000UF 20% 80V SCREW | 79% | View |
| PEH200MD5100MB2 | KEMET | CAP ALUM 10000UF 20% 63V SCREW | 67% | View |
| E32D101HPN103MC79U | United Chemi-Con | CAP ALUM 10000UF 20% 100V SCREW | 65% | View |
| E36D201HPS103MDA5U | United Chemi-Con | CAP ALUM 10000UF 20% 200V SCREW | 55% | View |
