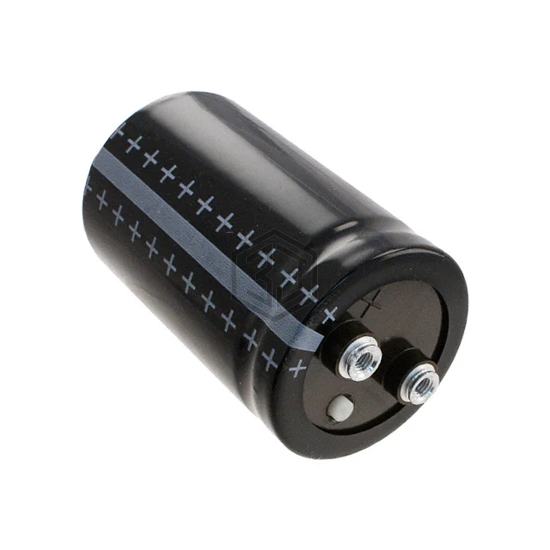

CAP ALUM 100000UF 20% 16V SCREW
B41456B4100M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 100000UF 20% 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,223
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 10mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 8.2 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.032" Dia (51.60mm) |
| Height - Seated (Max) | 3.177" (80.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50LSW100000M77X101 | Rubycon | CAP ALUM 100000UF 20% 50V SCREW | 66% | View |
| E36D350HPN104MC92U | United Chemi-Con | CAP ALUM 100000UF 20% 35V SCREW | 64% | View |
| MAL210187104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100000UF 20% 40V SCREW | 60% | View |
| LNR1J104MSEB | Nichicon | CAP ALUM 100000UF 20% 63V SCREW | 59% | View |
| 63LSW100000MNB77X141 | Rubycon | CAP ALUM 100000UF 20% 63V SCREW | 57% | View |
| ALS30A104MF040 | KEMET | CAP ALUM 100000UF 20% 40V SCREW | 55% | View |
Submit your RFQ for B41456B4100M000 and get a quote within 24 hours.
