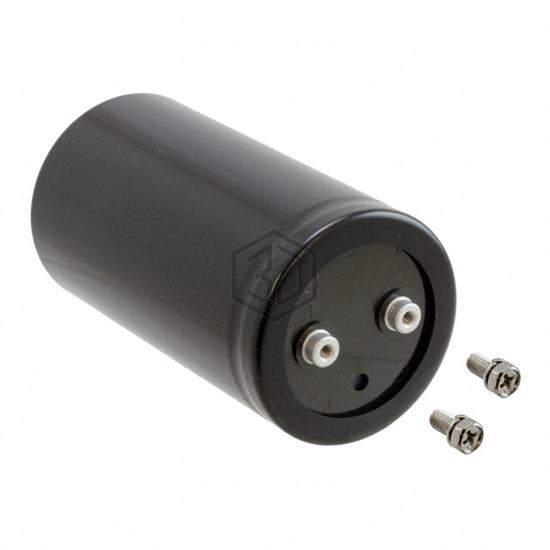

CAP ALUM 100000UF 20% 63V SCREW
63LSW100000MNB77X141 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,287
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 21.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 23.65 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.236" (31.40mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 5.709" (145.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41580A8100M003 | EPCOS - TDK Electronics | CAP ALUM 100000UF 20% 63V SCREW | 98% | View |
| B41560A8100M003 | EPCOS - TDK Electronics | CAP ALUM 100000UF 20% 63V SCREW | 98% | View |
| LNT1H104MSEB | Nichicon | CAP ALUM 100000UF 20% 50V SCREW | 86% | View |
| 50LSW100000M77X101 | Rubycon | CAP ALUM 100000UF 20% 50V SCREW | 79% | View |
| B41560A7100M003 | EPCOS - TDK Electronics | CAP ALUM 100000UF 20% 40V SCREW | 76% | View |
| E32D350HPC104MCA5U | United Chemi-Con | CAP ALUM 100000UF 20% 35V SCREW | 75% | View |
Submit your RFQ for 63LSW100000MNB77X141 and get a quote within 24 hours.
