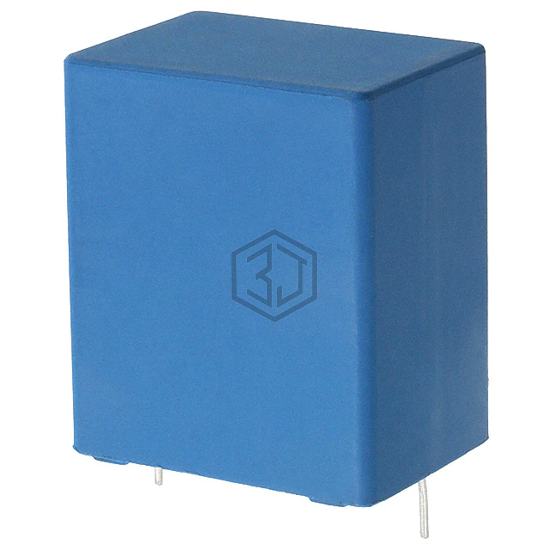

CAP FILM 5UF 5% 1.1KVDC RADIAL
B32774D0505J000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 5UF 5% 1.1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - dc 1100V (1.1kV), package / case Radial.
In Stock: 4,264
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 7 mOhms |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.748" W (31.50mm x 19.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Long Life |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-FG1B505J | Panasonic Electronic Components | CAP FILM 5UF 5% 1.1KVDC RADIAL | 100% | View |
| ALH505K161A052 | Cornell Dubilier Electronics (CDE) | 5UF 160VAC 32X28X14MM LS=27.5 | 100% | View |
| MKP1848550924P2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 1.2KVDC RADIAL | 98% | View |
| MKP1848C55012JP4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 1.2KVDC RADIAL | 98% | View |
| MKP1848C55090JK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 5UF 5% 900VDC RADIAL | 96% | View |
| B32756G4505K000 | EPCOS - TDK Electronics | CAP FILM 5UF 10% 800VDC RADIAL | 94% | View |
