Panasonic Electronic Components

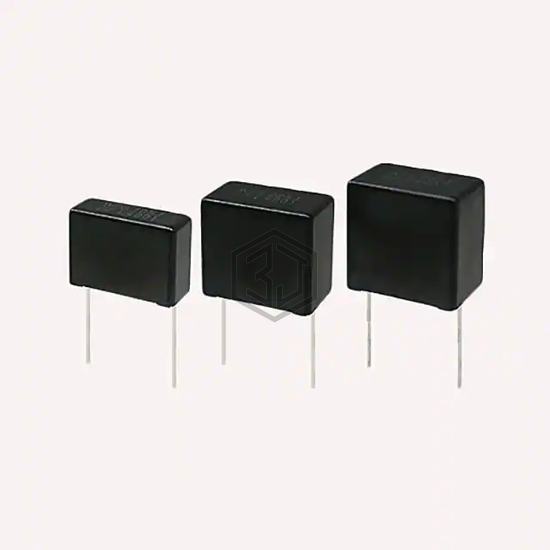

CAP FILM 5UF 5% 1.1KVDC RADIAL
ECW-FG1B505J is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 5UF 5% 1.1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage rating - dc 1100V (1.1kV), package / case Radial.
In Stock: 2,376
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.728" W (31.50mm x 18.50mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; High Frequency, Switching |
| Ratings | AEC-Q200 |
| Features | High Temperature |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECW-FG80505J | Panasonic Electronic Components | CAP FILM 5.0UF 800VDC RADIAL | 94% | View |
| ECQ-UAAF475K | Panasonic Electronic Components | CAP FILM 4.7UF 10% 275VAC RADIAL | 91% | View |
| ECW-FG60505JA | Panasonic Electronic Components | CAP FILM 5UF 600VDC RADIAL | 89% | View |
| MKP385547063JPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4.7UF 5% 630VDC RADIAL | 84% | View |
| F339MX254731MPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4.7UF 20% 630VDC RADIAL | 84% | View |
| F339MX254731MPI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4.7UF 20% 630VDC RADIAL | 84% | View |
Submit your RFQ for ECW-FG1B505J and get a quote within 24 hours.
