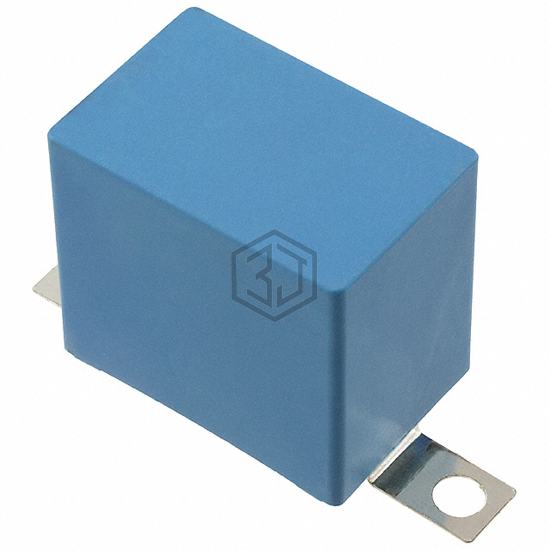

CAP FILM 0.1UF 10% 1.6KVDC SCREW
B32686S1104K564 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.1UF 10% 1.6KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 100°C, voltage rating - dc 1600V (1.6kV), package / case Rectangular Box.
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 450V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 15 mOhms |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 0.709" W (42.00mm x 18.00mm) |
| Height - Seated (Max) | 1.280" (32.50mm) |
| Termination | Screw Terminals |
| Lead Spacing | 0.972" (24.70mm) |
| Applications | High Pulse, DV/DT; Snubber |
| Ratings | - |
| Features | - |
Submit your RFQ for B32686S1104K564 and get a quote within 24 hours.
