Vishay Beyschlag/Draloric/BC Components

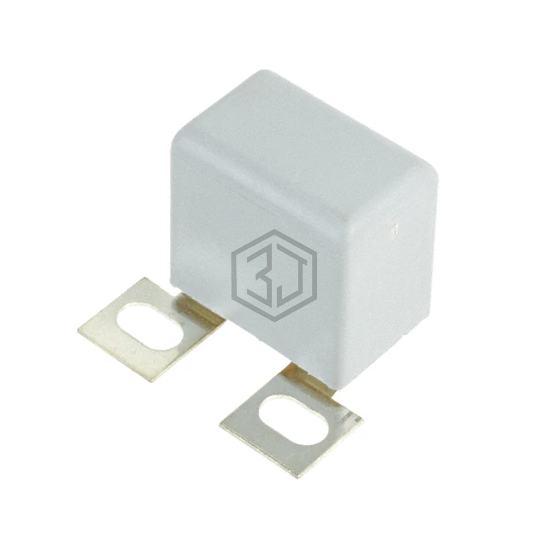

CAP FILM 0.1UF 5% 2KVDC SCREW
MKP386M410200JT5 is a Film Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP FILM 0.1UF 5% 2KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage rating - dc 2000V (2kV), package / case Rectangular Box.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.1 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 11 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.319" L x 0.866" W (33.50mm x 22.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Termination | Screw Terminals |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | Snubber |
| Ratings | - |
| Features | Low ESR |
Submit your RFQ for MKP386M410200JT5 and get a quote within 24 hours.
