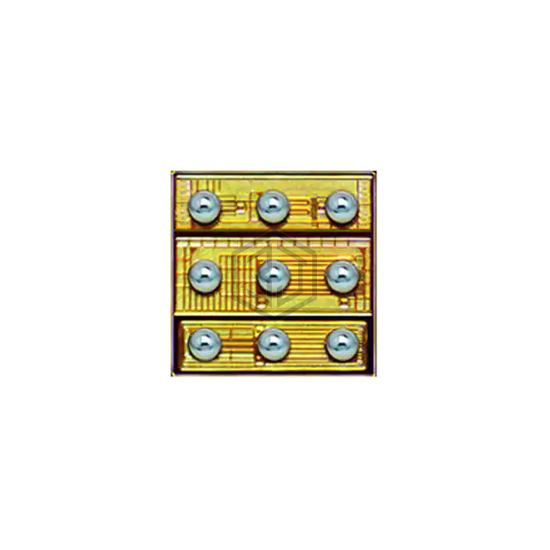

GANFET 3 N-CH 100V 9BGA
EPC2107 is a Transistors - FETs, MOSFETs - Arrays manufactured by EPC. GANFET 3 N-CH 100V 9BGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 9-VFBGA.
In Stock: 6,022
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 3 N-Channel (Half Bridge + Synchronous Bootstrap) |
| FET Feature | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 1.7A, 500mA |
| Rds On (Max) @ Id, Vgs | 320mOhm @ 2A, 5V, 3.3Ohm @ 2A, 5V |
| Vgs(th) (Max) @ Id | 2.5V @ 100µA, 2.5V @ 20µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.16nC @ 5V, 0.044nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 16pF @ 50V, 7pF @ 50V |
| Power - Max | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 9-VFBGA |
| Supplier Device Package | 9-BGA (1.35x1.35) |
Submit your RFQ for EPC2107 and get a quote within 24 hours.
