INDUCT ARRAY 2 COIL 2.31UH SMD

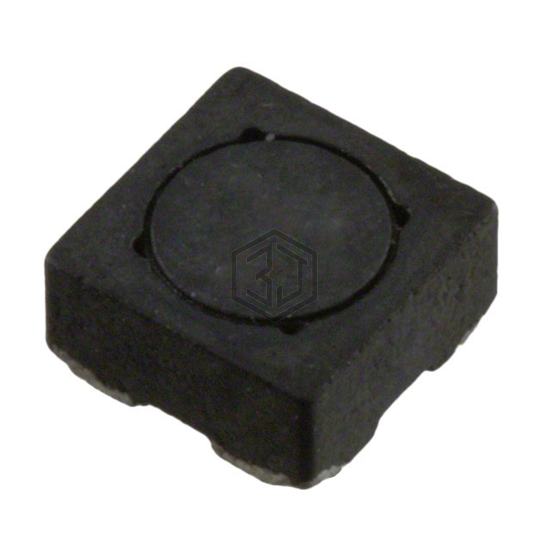

SDQ25-2R2-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 2.31UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.205" L x 0.205" W (5.20mm x 5.20mm).
In Stock: 5,423
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 2.31 µH |
| Inductance - Connected In Series | 9.25 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 2.67 A |
| Current Rating - Series | 1.34 A |
| Current Saturation - Parallel | 2.65 A |
| Current Saturation - Series | 1.32 A |
| DC Resistance (DCR) - Parallel | 35.1mOhm |
| DC Resistance (DCR) - Series | 140.2mOhm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height | 0.098" (2.50mm) |
Submit your RFQ for SDQ25-2R2-R and get a quote within 24 hours.
