INDUCT ARRAY 2 COIL 1.35UH SMD

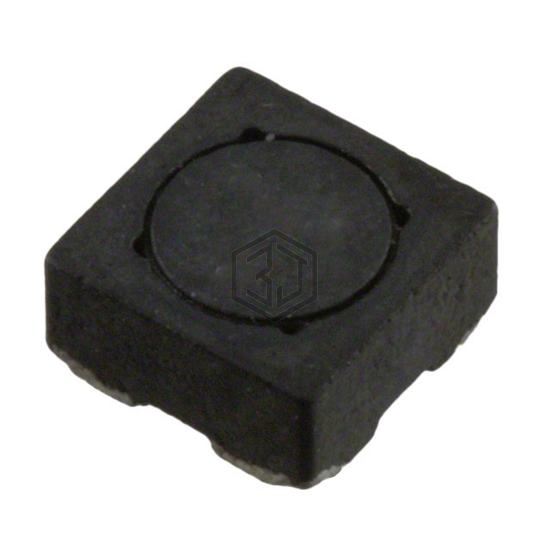

SDQ25-1R5-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 1.35UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.205" L x 0.205" W (5.20mm x 5.20mm).
In Stock: 5,403
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 1.35 µH |
| Inductance - Connected In Series | 5.41 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 2.97 A |
| Current Rating - Series | 1.49 A |
| Current Saturation - Parallel | 3.46 A |
| Current Saturation - Series | 1.73 A |
| DC Resistance (DCR) - Parallel | 28.3mOhm |
| DC Resistance (DCR) - Series | 113mOhm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height | 0.098" (2.50mm) |
Submit your RFQ for SDQ25-1R5-R and get a quote within 24 hours.
