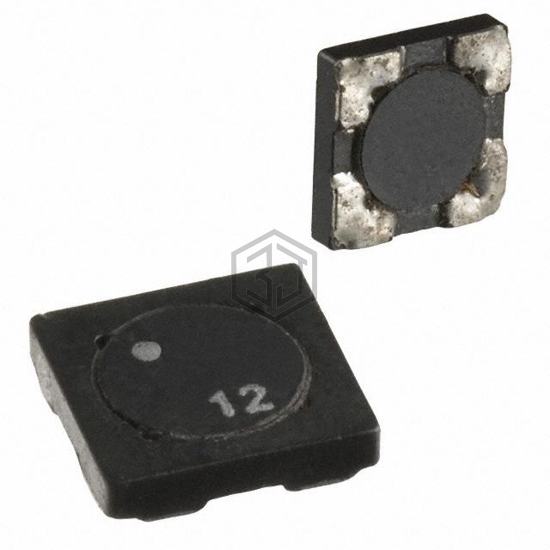

INDUCT ARRAY 2 COIL 8.41UH SMD
SDQ12-8R2-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 8.41UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.205" L x 0.205" W (5.20mm x 5.20mm).
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 8.41 µH |
| Inductance - Connected In Series | 33.64 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 868 mA |
| Current Rating - Series | 434 mA |
| Current Saturation - Parallel | 1.05 A |
| Current Saturation - Series | 524 mA |
| DC Resistance (DCR) - Parallel | 331.8mOhm |
| DC Resistance (DCR) - Series | 1.33Ohm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height | 0.047" (1.19mm) |
Submit your RFQ for SDQ12-8R2-R and get a quote within 24 hours.
