INDUCT ARRAY 2 COIL 3.61UH SMD

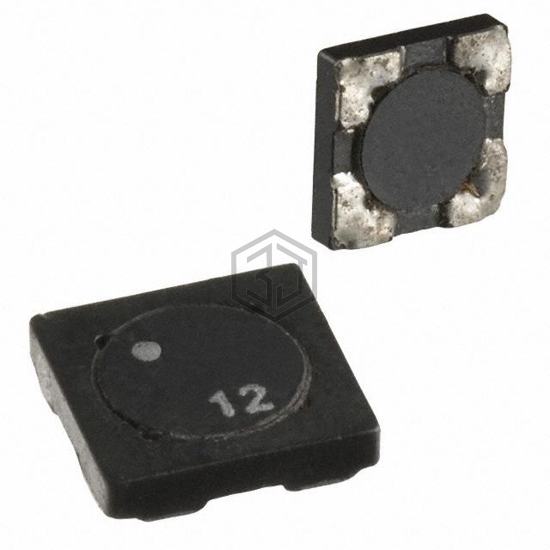

SDQ12-3R3-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 3.61UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.205" L x 0.205" W (5.20mm x 5.20mm).
In Stock: 5,631
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 3.61 µH |
| Inductance - Connected In Series | 14.44 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 1.28 A |
| Current Rating - Series | 640 mA |
| Current Saturation - Parallel | 1.6 A |
| Current Saturation - Series | 800 mA |
| DC Resistance (DCR) - Parallel | 152.7mOhm |
| DC Resistance (DCR) - Series | 610.6mOhm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height | 0.047" (1.19mm) |
Submit your RFQ for SDQ12-3R3-R and get a quote within 24 hours.
