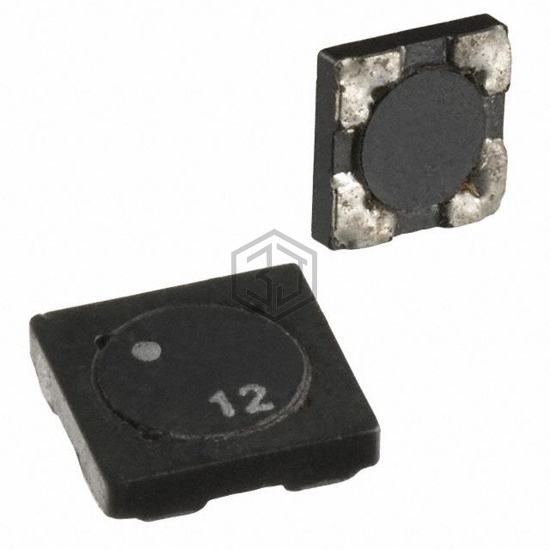

INDUCT ARRAY 2 COIL 15.21UH SMD
SDQ12-150-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 15.21UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.205" L x 0.205" W (5.20mm x 5.20mm).
In Stock: 3,610
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 15.21 µH |
| Inductance - Connected In Series | 60.84 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 658 mA |
| Current Rating - Series | 329 mA |
| Current Saturation - Parallel | 779 mA |
| Current Saturation - Series | 390 mA |
| DC Resistance (DCR) - Parallel | 576.6mOhm |
| DC Resistance (DCR) - Series | 2.31Ohm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height | 0.047" (1.19mm) |
Submit your RFQ for SDQ12-150-R and get a quote within 24 hours.
