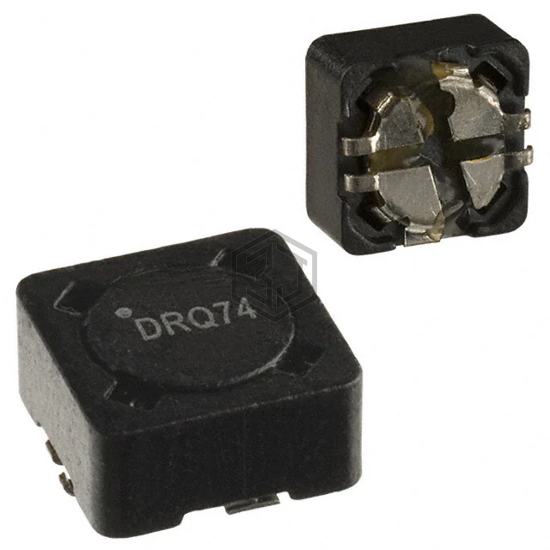

INDUCT ARRAY 2 COIL 9.882UH SMD
DRQ74-100-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 9.882UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.299" L x 0.299" W (7.60mm x 7.60mm).
In Stock: 7,941
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 9.882 µH |
| Inductance - Connected In Series | 39.53 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 2.41 A |
| Current Rating - Series | 1.2 A |
| Current Saturation - Parallel | 3.17 A |
| Current Saturation - Series | 1.58 A |
| DC Resistance (DCR) - Parallel | 48.9mOhm |
| DC Resistance (DCR) - Series | 196mOhm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height | 0.175" (4.45mm) |
Submit your RFQ for DRQ74-100-R and get a quote within 24 hours.
