INDUCT ARRAY 2 COIL 15.01UH SMD

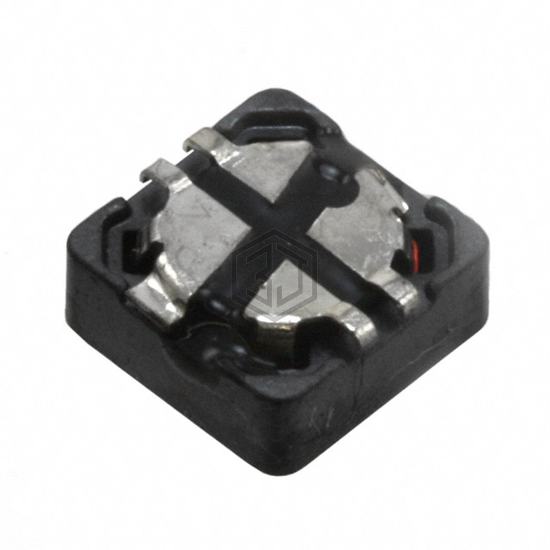

DRQ73-150-R is a Arrays, Signal Transformers manufactured by Eaton - Electronics Division. INDUCT ARRAY 2 COIL 15.01UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.299" L x 0.299" W (7.60mm x 7.60mm).
In Stock: 2,501
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 15.01 µH |
| Inductance - Connected In Series | 60.04 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 1.83 A |
| Current Rating - Series | 916 mA |
| Current Saturation - Parallel | 2.05 A |
| Current Saturation - Series | 1.03 A |
| DC Resistance (DCR) - Parallel | 84.4mOhm |
| DC Resistance (DCR) - Series | 339mOhm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height | 0.140" (3.55mm) |
Submit your RFQ for DRQ73-150-R and get a quote within 24 hours.
